Front Access P2.97 Indoor Rental Led Display with 50x100cm Panel for Concerts
P2.97 Front Access Indoor Rental Led Display Description
● Front Maintenance Service
● TUV Certificated and Reddot Awarded
● Cabinet 500mmx500mm or 500mmx1000mm
● Curvilinear, Concave, Convex
P2.97 Front Access Indoor Rental Led Display Parameter
| BIR-II-2 | |
| Physical Pitch(mm) | 2.97mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 112,896 pixels/sqm |
| Module Dimensions (W × H) (mm) | 250x250 |
| Panel Dimensions (mm) | 500x500x80/500x1000x80 |
| No. of Modules Per Panel (W × H) | 2x2/2x4 |
| Physical Resolution of Module (W x H) | 84x84 |
| Physical Resolution of Panel (W x H) | 168x168/168x336 |
| Panel Material | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg / panel |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 400 W / ㎡ |
| Max Power Consumption | 800 W / ㎡ |
| Operating Temp/Humidity | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% |
| Refresh Rate | >1,920 Hz |
| Brightness | ≥1,200nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
P2.97 Front Access Indoor Rental Led Display Features:
Unsurpassed Color Uniformity
● Unique color calibration process
● Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
● Truss hanging and ground support both available
● Cable-less between modules
● Front and rear access
● Fast lock tools free installation
Superior Electrical Features

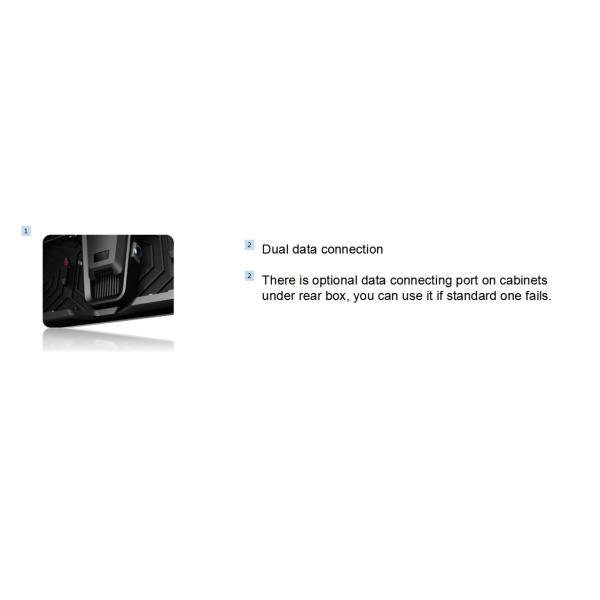

● Dural signal backup port
● UI LCD monitoring display indicates the status
Slim, Light Weight and Quiet
● 500mmx1000mm cabinet can be curvilinear
● 80mm thickness, 7 KG per cabinet
● Fanless design
