| Categories | Cash In Transit Vehicles |
|---|---|
| Brand Name: | DIMA |
| Model Number: | DMT5045XYCEV2-AM |
| Certification: | ISO9001, CCC |
| Place of Origin: | CHONGQING, CHINA |
| MOQ: | 1 Unit |
| Price: | By negociation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000Units/Year |
| Delivery Time: | 1month |
| Product Name:: | Touring serie-DMT5045XYCEV2-AM |
| Chassis Model: | Pure Electric Chassis JX1040TH25BEV |
| Time For Battery Charging 80%:: | 40 |
| Total Battery Energy(kwh): | 80.4 |
| Drive Type: | 4X2 |
| Cruising Range (Cruising Range (40km / H Constant Speed Working Condition) (km): | 460 |
| Minimum Ground Clearance(mm): | 145 |
| Maximum Speed(Km/h): | 100 |
| Company Info. |
| chongqing dima industry co.,ltd |
| View Contact Details |
| Product List |

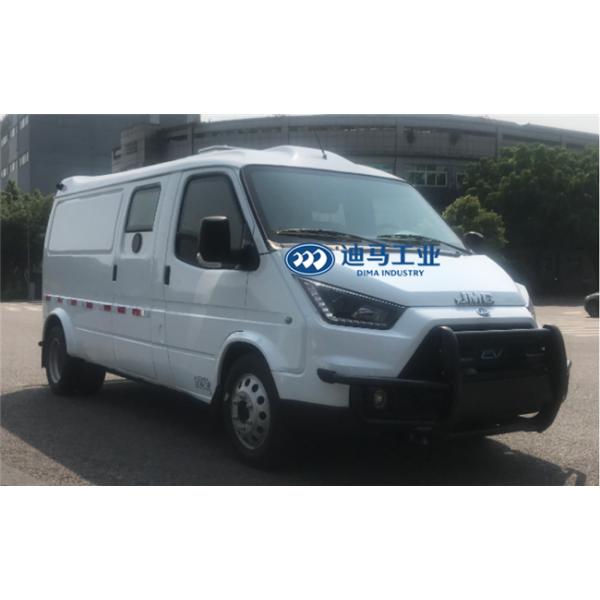

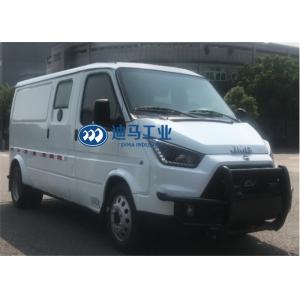

Pure Electric Vehicle, Bulletproof And Armor Cash Carrier And Riot-Proof Banknote Box For Bank Armed Escort
Description:

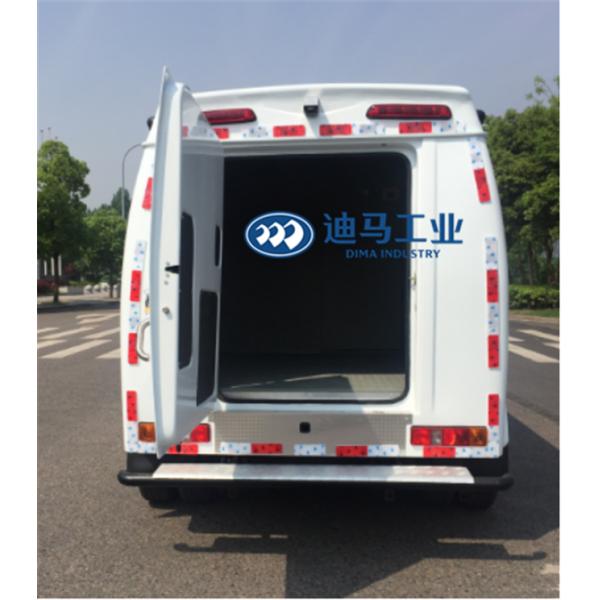

DMT5045XYCEV2-AM is made of JMC touring series pure electric chassis,The drive cabin and the escort compartment are bulletproof on all four sides, and the banknote compartment is riot-proof,The drive cabin and the escort compartment are bulletproof on all four sides, and the banknote compartment is riot-proof, it have very good front view with streamlined and beautiful appearance and set up a banknote transfer hole in the drive cabin, embrasures on both sides of the escort compartment, as well as a color monitoring system.
Main technical parameters
| Model | DMT5045XYCEV2-AM |
| Chassis Model/Chassis manufacturer | JX1040TH25BEV Pure Electric Vehicle/JMC |
| Drive system | 4×2 |
Overall dimensions L×W×H mm | 5790(With front and rear bumpers)×2080×2280 5790(With front and rear bumpers)×2080×2240 5790(With front and rear bumpers)×2080×2140 |
Banknote box dimensions L×W×H mm | 1950×1710×1410(Single layer door/ 1760×1710×1410(double layer door)1950×1710×1360(Single layer door)/ 1760×1710×1360(double layer door) 1950×1710×1160(Single layer door)/ 1760×1710×1160(double layer door) |
| Volume (M3) | 4.7(Single layer door)/4.2(double layer door) 4.5(Single layer door)/4.1(double layer door) 3.9(Single layer door)/3.5(double layer door) |
| Curb weight (kg) | 3030(Single layer door),3140(double layer door) |
| Gross vehicle weight (kg) | 4200 |
| Rated load (including the crew) (kg) | 1170(Single layer door),1060(double layer door) |
| Number of people allowed in the drive cabin (person) | 3+3,2+3,3+2 |
| Drive motor model / manufacturing company | TZ260XSDA4 |
| Drive motor rated power / speed / torque(kW/r/min/N.m) | 60kW/2046/280 |
| Peak power / speed / torque of driving motor(kW/r/min/N.m) | 120kW/4500/800 |
| Battery model / manufacturing company | LSHD144S003P-02A-C1 |
| Total battery energy (kwh) | 80.4 |
| Cruising range (40km / h constant speed working condition) (km)(km) | 460 |
| Cruising range (heavy vehicle CWTVC city comprehensive working condition) (km) | 260 |
| Charging 80% of the time (DC fast charging)(min) | 40 |
| Battery pack energy density (Wh / kg) | 140 |
| Tread(Front/Rear)(mm) | 1700/1645 |
| Wheelbase(mm) | 3570 |
| Ground Clearance(mm) | 142 |
| Maximum speed (Km / h) | 100 |
| Tire specifications | 185/75R16C |
| Bulletproof level | B4-B6 |
|
