| Categories | Handheld Hydraulic Breaker |
|---|---|
| Brand Name: | Zondar |
| Model Number: | ZDHB20 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1sets |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/years |
| Delivery Time: | 7-15workday |
| Packaging Details: | standard wooden case |
| Name: | Hydraulic breaker |
| Model: | ZDHB20 |
| Brand: | ZONDAR |
| Handle form: | Shock absorbing |
| Pickaxe: | short hair and Pointed |
| Flow: | 26-34 Lpm |

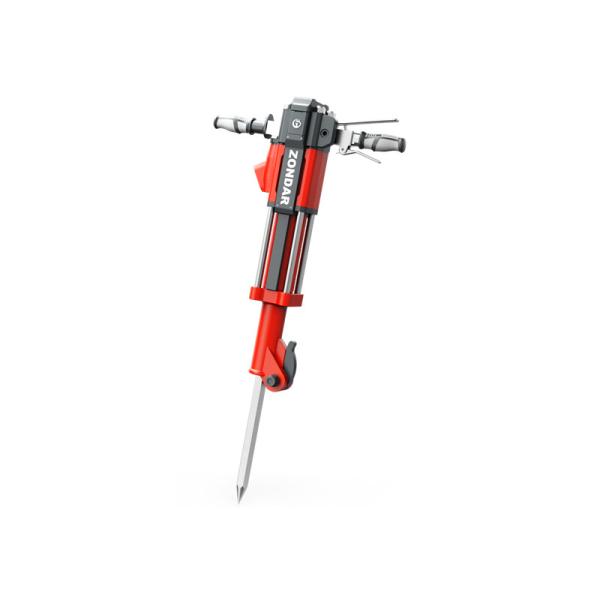

Hydraulic Breaker Shock-Absorbing Handle Pickaxes Of Different Shapes
Hydraulic Break
Product descripition:
Hydraulic crushing pick is suitable for crushing solid reinforced concrete, rock, asphalt and ramming work.
Product features:
1.Light weight, high efficiency: Compact structure, light weight high efficiency.
2.Long life, easy service:The world's top seal ring brand with the patented seal structure, high reliability, long service life and easymaintenance.
3.Vibration attenuation handle more comfortable:Standard vibration handle to reduce hand vibration frequency, in line with the EU CE standard.
performance technology parameter configuration
| Model | ZDHB10 | ZDHB20 | ZBHB30 |
| Weight/kg | 9.9 | 22 | 28 |
| Flow/Lpm | 18-23 | 26-34 | 26-34 |
| Impact frequency/1/min | 1500-2400 | 1500-2400 | 1500-2400 |
| Maximum pressure/Mpa | 16 | 16 | 16 |
| Working pressure/Mpa | 9-14 | 9-14 | 9-14 |
| Pick-rod socket size/mm | 19×50 | 25×108 | 25×108 |
| Handle type | D-Handle | Anti-Vibration | 328×328×470 |
| Dimension/mm | 550×235×75 | 660×470×132 | 680×410×140 |
|
