| Categories | Momentary Push Button Switch |
|---|---|
| Brand Name: | YUESHUN |
| Model Number: | JS16 series |
| Certification: | CE RoHS |
| Place of Origin: | Wenzhou, China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T to our company account or by paypal |
| Supply Ability: | 5000Pcs/Day |
| Delivery Time: | 3-7 work days |
| Packaging Details: | The product is packed in foam box to prevent damage during transportation. |
| Max. voltage: | 36V DC |
| Max. current: | 2A |
| Operation type: | IP 67 |
| Operating Temperature: | -20℃~+55℃ |
| Weigh: | 30g |
| Terminal type: | Screw Termlmal or Pin Termlmal |

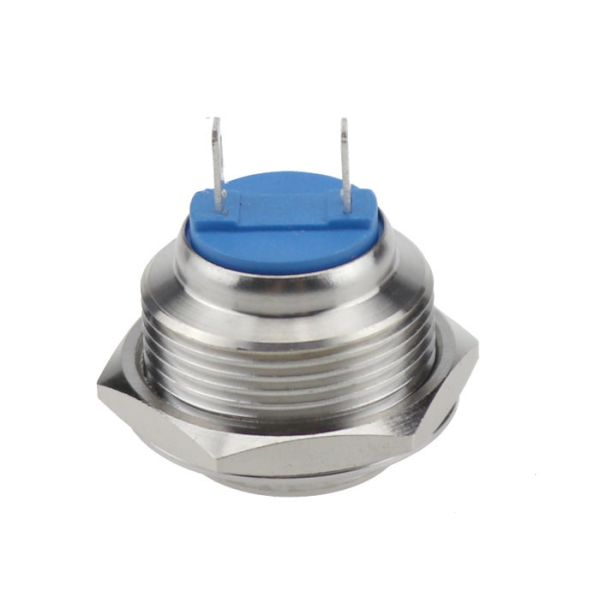

16mm Normal closed Momentary Push Button Switch Stainless Steel or Nickel Plated Brass Material
Product Description
- The Momentary pushbutton swithes are High-grade appearance and
nice touch feeling, which is made of 304 stainless steel. If you
need other materials please feel free to contact us.
- The pushbutton switches are widly used in car motorcycle boat ,
car modified, computer appliance lamp switch, industrial control,
access control,etc.
- The protection level of this push button switch reached IP67, can
be widely used in various fields, not easily damaged, can be used
for a long time.
Product Specification
Model Number | JS16 series |
Mounting Hole | 16mm |
Max.Switch Rating | Ith:2A Ui:36V DC |
Material | Body Material: Stainless Steel or Nickel Plated Brass |
Button Material: Stainless Steel or Nickel Plated Brass | |
Contact Material: Silver Alloy | |
Base Material: PBT | |
Switch Operation | Momentary |
Contact Configuration | Normal Open or Normal Closed can be customized. |
Mounting panel thickness | 1-6 mm |
Operation Distance | About 1.5 mm |
Protection Level | IP65 |
Operating Temp | -20℃~+55℃ |
|
