| Categories | Heavy Copper PCB |
|---|---|
| Brand Name: | Yizhuo |
| Model Number: | Aluminum Pcb Board 01 |
| Certification: | CE,ROHS,UL |
| Place of Origin: | China |
| MOQ: | 2PCS |
| Payment Terms: | T/T, Western Union |
| Delivery Time: | 10-12 work days |
| Packaging Details: | Vacuum Package+ Good quality carton box |
| Product Name: | Copper Plate PCB |
| Material: | Copper |
| Copper Thickness: | 1/2OZ |
| Peelable: | 0.3-0.5mm |
| Profiling Punching: | Routing, V-CUT, Beveling |
| Service: | One-stop service |

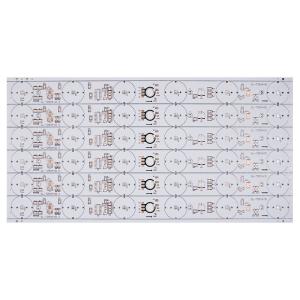

Adjustable 60w Copper Plate PCB Garage Integrated Circuit Board
pcb copper plate pcb copper plating 60w Adjustable led pcb board
for Garage
The aluminum substrate is a metal-based copper clad laminate with
good heat dissipation function. Generally, a single panel is
composed of a three-layer structure, which is a circuit layer
(copper foil), an insulating layer and a metal base layer. Commonly
found in LED lighting products. There are two sides, the white side
is for soldering the LED pins, and the other side is the natural
color of aluminum. Generally, the thermal conductive paste will be
applied to contact the thermal conductive part. There are ceramic
substrates and so on.
LAYER | PROTOTYPE | MASS PRODUCTION (above 20 m2) | |
Quick Turn | Standard Time | ||
MC PCB | 48 hours | 4-5 days | 10-12 days |
PFC 1 L | 48 hours | 5-6 days | 12-13 days |
1L | 24 hours | 3-4 days | 8-10 days |
2L | 24 hours | 3-4 days | 8-10 days |
4L | 48 hours | 5-6 days | 8-10 days |
6L | 72 hours | 6-7 days | 10-12 days |
8L | 72 hours | 7-8 days | 12-14 days |
10L | 96 hours | 9-10days | 16-18 days |
One-stop Service Include
PCB Prototype | Quick Turn PCB | Single-Sided PCB |
Double-Sided PCB | Multilayer PCB | Rigid PCB |
Flexible PCB | Rigid-Flex PCB | LED PCB |
Aluminum PCB | Metal Core PCB | Thick Copper PCB |
HDI PCB | BGA PCB | High TG PCB |
PCB Stencil | Impedance Control PCB | PCB Assembly |
High-Frequency PCB | Bluetooth Circuit Board | Automotive PCB |
USB Circuit Board | Halogen-Free PCB | Antenna PCB |
|
