10 Ton Remote Control Single Beam Overhead Traveling Crane
LDA model 10Ton Single Beam Electric Overhead Traveling Crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3 A4.
10Ton Single Beam Electric Overhead Traveling Crane consists of main beam,end beam,electric hoist,festoon cable and electric control system,It is widely used in plants, warehouse, and material stocks to lift goods.
10Ton Single Beam Electric Overhead Traveling Crane is matched with electric hoist which is CD model or MD model.
It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
the working environment temperature is -10℃~60℃, and the relative humidity does not exceed 50% at a temperature of 40℃. Other places where molten non-metallic materials and hot solid metals are lifted can also be used as reference.
| Lifting weight(T) | 3 | 5 | 10 | 16 | 20 | |
| Span(m) | 10.5~31.5 | |||||
| Max Lifting height(m) | 6~30 | |||||
| Working class | A3 A4 | |||||
| Main Hoisting Speed(m/min) | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5,3.5/0.35 | 3.5,3.5/0.35 | |
| Trolley Cross Traveling Speed(m/min) | 20,2~20(frequency inverter) | |||||
| Crane Long Traveling Speed(m/min) | 30,3~30(frequency inverter) | |||||
| Motor Type | Squirrel cage motor | |||||
| Motor (Kw) | Main Hoisting | 4.5 | 7.5 | 13 | 13 | 18.5 |
| Trolley Cross Traveling | 1*0.4,1*0.8,2*0.8 | |||||
| Crane Long Traveling | 2*0.8,2*1.5,2*2.2 | |||||
| Control mode | Pendent line control,Remote control,Cabin control | |||||
| Recommended Rail model | 24kgs/m | 30kgs/m | 38kgs/m | 43kg/m | ||
| Power source | 3Ph A.C 50Hz 380V | |||||

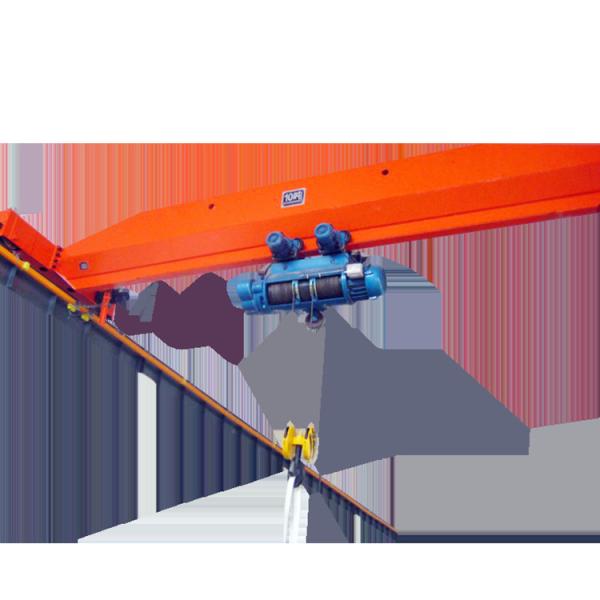

Product photo of 10Ton Single Beam Electric Overhead Traveling Crane:


Main Features of Top quality 10Ton Single Beam Electric Overhead Traveling Crane :
1,Strong box type, one whole shape main beam welded by robot
machine, very strong and beautiful.
2, Sand blast for the whole crane steel structure, to make sure the
paint is very strong.
3, Six action direction movement, to get enough working area.
4, Anti high temperature
5, Full safety system as follows:
Weight overload protection
Emergency stop system
Over current protection
Short-circuit protection
Phase sequence protection
Zero position protection,Voltage loss protection
Limit switch and stopper for crane long traveling and cross
traveling
Overhigh lift and overlow lift limit switch

|   |
