JTHS-A Hydraulic Hand Stacker Manual Operation for Handling 1000-3000kg Capacity Adjustable Forks Ergonomic Design

Categories Transport Trolley
Place of Origin: China
Brand Name: Jentan
Certification: CE;GS;EN;ISI;AU;UL;CUL;TUV
MOQ: 1 piece
Price: Negotiation
Delivery Time: 7-60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000pcs per year
Model Number: JTHS-A
Packaging Details: Wooden Box
Application: Warehouse, Supermarket, Factory
Usage: Transportation of goods
Handle Material: Plastic
Load Capacity: Up to 500kg
Color: Silver
Features: Durable, Easy to Maneuver
Material: Stainless Steel
Wheel Material: Rubber
Surface Treatment: Electrostatic Spraying
Wheel Diameter: 10 inches
Dimensions: 1200mm x 600mm x 800mm
Number Of Wheels: 4
Handle Length: 30 inches
Foldable: Yes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

JTHS-A Hydraulic Hand Stacker Manual Operation for Handling 1000-3000kg Capacity Adjustable Forks Ergonomic Design

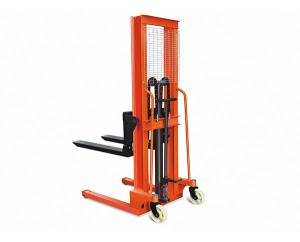

JTHS-A Hydraulic Hand Stacker


The hand stacker is a manually operated, hand push, and hand lift stacker designed to offer cost-effective handling for both vehicle loading and production areas, with easy maintenance and low running costs.


Key Features:

Adjustable forks to accommodate various requirements.
The ergonomic rubber handle ensures comfortable and easy operation.
Effortless and quick lifting using the the foot pedal even without loads

ModelCTY-A1.0CTY-A2.0CTY-A3.0
Rated lifting capacity(kg)100020003000
Max. lifting height(mm)160016001600
Lowered height of forks(mm)100100100
Fork length(mm)9009001000
Adjustable width of forks(mm)200-580240-680300-770
Lifting speed(mm/stroke)201410
Lowering speed(mm/stroke)ControllableControllableControllable
Outer width of front legs(mm)720740750
Operation power of crank(kg)243240
Min. refuel volume for fuel tank(L)1.62.03.0
Front wheel size(mm)φ100x50φ100x50φ100x50
Rear wheel size(mm)φ180x50φ180x50φ180x50
Overall size(mm)2050x730x13802050x740x14802050x740x1650
Self weight(mm)115180280
