Water Pump TD Central Air Conditioning Pipeline Circulating Water

Categories CNP Mechanical Seal
Brand Name: YUE MI
Model Number: TD-32mm TD-40mm
Certification: ISO SGS
Place of Origin: Guangzhou, China
MOQ: 1/PCS
Price: US $ 16.8~30.8/PCS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/Set/Month
Delivery Time: 2 word days
Packaging Details: Details Carton
Traemark: YUEMI
Pump: TD pump
Function: sewage Pump
Usage: Standard
Shaft diameter: TD-32mm TD-40mm
Type: Balanced
Company Info.
YUEMI
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Water Pump TD Central Air Conditioning Pipeline Circulating Water

TD Series Mechanical Seals for Centrifugal Pipe Circulating Water Pumps

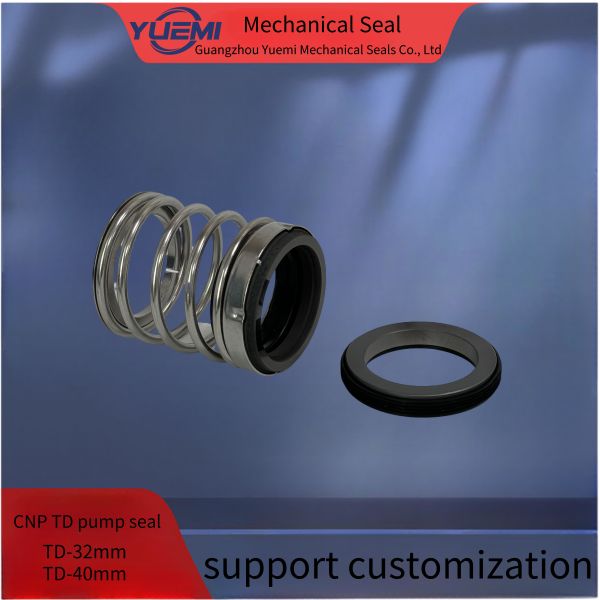

TD Series Mechanical Seal Product Overview TD Series Mechanical Seal Components TD Series Mechanical Seal Installation View TD Series Mechanical Seal Technical Details
Product Specifications
Product NameCustom Mechanical Seal Type Special for TD Pump
ModelTD Pump Use
Available Sizes28, 32, 40
ApplicationPump
MaterialsCA/CE/SiC/TC/NBR/EPDM/V/S.S/SUS304/SUS316
CertificationsISO9001, CQC, SGS, CNAS
Technical Parameters
Temperature Range-30℃ to +200℃
Maximum Pressure≤1.2 MPa
Maximum Speed≤10 m/s
Compatible MediaSewage
Material Composition
ComponentMaterials
Rotary RingSiC/VIT
Stationary RingSiC/VIT
SpringSUS304/SUS316
Stationary SeatSUS304/SUS316
Secondary SealFKM/EPDM
Rotary Ring HolderSUS304/SUS316
Installation Preparation Requirements
  • Shaft outside diameter tolerance: ±0.05mm
  • Shaft run out: <0.1mm
  • Shaft end float: <0.13mm
  • No sharp edges on the shaft over the O-ring area
Important Note: During installation, avoid scratching or damaging the O-ring. If any component is damaged, please contact us for replacement.
Installation Instructions

Our cartridge seals are thoroughly cleaned and leak-tested before sale. To prevent damage, do not disassemble or clean components before installation.

Fitting Specifications:

  • Seal-to-shaft fitting allowance: dl h6 0.8
  • Leading edge required at shaft end
  • Screw position shaft diameter: 01 0.2mm smaller to prevent over-tightening
  • Lubricate shaft with appropriate oil

Installation Steps:

  1. Place cartridge seal into pump chamber
  2. Tighten four flange screw bolts, ensuring medium leading-in hole "G" is at top position
  3. Tighten four set screws to position shaft sleeve on shaft
  4. Remove four gauge plates (retain for future installation/disassembly)
  5. Connect medium lead-in pipe with hole "G" to flush away friction heat and maintain seal chamber during pump operation
Post-Installation Check: After installation, manually rotate the shaft to verify smooth rotation. If rotation is not smooth, the seal has been improperly installed.
Quality Assurance and Customer Service Commitment Long-term Cooperative Partnership Benefits Additional Product Application Example

We are committed to establishing long-term cooperative relationships with our clients by providing high-quality products and exceptional service. Our success is built on mutual trust and lasting partnerships.
