High Precision Water Detection Sensor Cutomized ISO9001 CE Certification

Categories Environment Monitoring System
Brand Name: ESTEL
Model Number: NSW-K1P5
Certification: ISO9001, CE, 3C, FCC, TLC
Place of Origin: Shenzhen, China (Mainland)
MOQ: 1
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 sets per month
Delivery Time: 7-10 working days
Packaging Details: carton/wooden case
Supply Voltage: 12 VDC (±5%)
Operating Current: < 15 mA (Max)
Alarm Current: < 30 mA (Max)
Load Capacity of relay contact: 1 A 30 VDC/0.5 A 125 VAC
Alarm Water Level: (2±0.5) mm
External Dimensions: : Φ68 mm * Φ34.8 mm * 31.5 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

    High Precision Water Detection Sensor Cutomized ISO9001 CE Certification


    High Precision Water Detection Sensor Cutomized ISO9001 CE Certification


    Quick Details:


    Place of Origin: Shenzhen, China (Mainland)Supply voltage: 12 VDC (±5%)
    Brand Name: ESTELOperating current: < 15 mA (Max)
    Product Name: Water Detection SensorAlarm current: < 30 mA (Max)
    Model Number: NSW-K1P5Load capacity of relay contact: 1 A 30 VDC/0.5 A 125 VAC
    Certification: ISO9001, CE, 3C, FCC, TLCAlarm water level: (2±0.5) mm
    Application: Outdoor Telecom CabinetOutput mode: Relay is constantly on (disconnected in normal cases; attached in the case of alarm)
    External dimensions: Φ68 mm * Φ34.8 mm * 31.5 mmOperating temperature: 0°C–60°C

    Payment & Shipping Terms


    Minimum Order Quantity:1 set
    Price:negotiation
    Payment Terms:L/C, D/A, D/P, T/T, Western Union
    Supply Ability:50,000 sets per month
    Delivery Time:7-10 working days
    Packaging Details:carton/wooden case

    1. Description


    (1) Operating Principles

    When two test probes of the NSW-K1P5 water detection sensor are immersed in water, the resistance between the two probes changes and the internal test control circuit drives the relay to attach, thus connecting the external alarm circuit.


    (2) External Dimensions

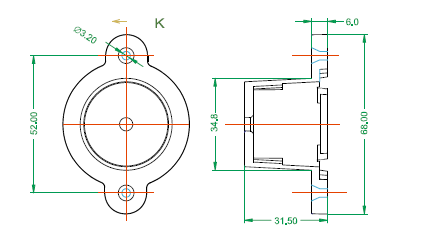

    External dimensions: Φ68 mm * Φ34.8 mm * 31.5 mm, as shown in the following figures:



    2. Specification

    Technical Parameter


    Table 1
    ModelNSW-K1P5
    Supply voltage12 VDC (±5%)
    Operating current< 15 mA (Max)
    Alarm current< 30 mA (Max)

    Load capacity of relay contact

    1 A 30 VDC/0.5 A 125 VAC

    Alarm water level(2±0.5) mm
    Output modeRelay is constantly on (disconnected in normal cases; attached in the case of alarm)

    Operating temperature

    0°C–60°C


    3. Wiring


    Red - positive polarity (+) Black

    - negative polarity (-) Yellow –

    output (relay contact 1) Green –

    output (relay contact 2)


    4. Packing and Shipping




    Our Delivery Agent


    The goods can be shipped by sea, by air, by courier, by land, by train, etc.

    Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
