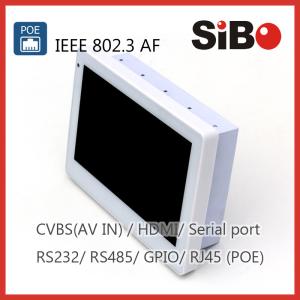

7" White In Wall Mounted Tablet PC With Wall Bracket, POE For Home Automation

7" White In Wall Mounted Tablet PC With Wall Bracket, POE For Home Automation

1. IPS screen
2. Embedded Design
3.WIFI / 3G / LAN
4. RJ45

5. Capacitive touch screen, no any buttons, full glass as touch panel, easy clean

7" White In Wall Mounted Tablet PC With Wall Bracket, POE For Home Automation 7 Inch Touch Panel IPS Screen (G+G glass) Android OS Inwall / Onwall version Serial port , GPIO , Uart interface No buttons design Slim Body with 3 Brackets for wall mounting Camera & Mic Model Number Q896 Hardware Specs Solution Allwinner Dual-Core Cortex™-A7 CPU CPU ARM Cortex A7 Dual-Core, 1.2Ghz Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 RAM 1GB Nand Flash 8GB Software Feature System Google Android 4.2.2 Video H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols Audio Integrated 3W Amplifier (No Speakers, Only Speaker connector) Language Support multi-languages Interfaces Back Ethernet Interface(RJ45) HDMI Out USB Socket CVBS IN DC IN Power Terminal UART, IO, 3W AMP OUT Available Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 LAN Port Ethernet RJ45 Power Supply DC IN DC 9V-24V Boot Up Auto Boot Auto Boot Up When Power Supplies Software Auto Run Web App Notice: There is no any battery and buttons as normal Tablet PC , auto power on is available ! Builtin HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) Desktop bracket and the mounting picture: Flush mounting installation: On wall mounting:

Welcome the OEM orders for smart home , home automation applications...

Shenzhen Sibo Industrial & Development Co. Ltd, which is a high technology grade enterprise, is specialized in R&D, manufacture, marketing and technological services ,with complex management ability and international competing ability.

We are specialized in producing home appliances. Our company was set up in 2001 in Shenzhen City.

Our feature product are 7 inch, 9inch ,10inch tablet pc with multifunction and other electronic products for home automation, industrial Field, Car, Bus System, and so on.
