| Categories | Plate Edge Milling Machine |
|---|---|
| Brand Name: | Wellnit |
| Model Number: | PB-10D |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets a month |
| Delivery Time: | Within 7days after we received 100% payment |
| Packaging Details: | Plywood |
| Power: | AC 380V 50Hz |
| Total: | 2800W |
| Spindle Speed: | 1440r/min |
| Bevel Angle: | 30°-60° |
| Clamp Width: | >20mm |
| Processing Materials: | Carbon Steel, Stainless Steel, Aluminium Alloy, Etc. |

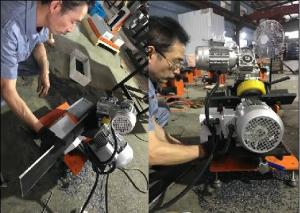

Smooth Cutting Portable Plate Beveling Machine
With 4 Blades Rustproof
Main performance of the product
PB-10D small table plate milling machine.The finish of the groove is as
high as Ra 3.2-6.3,and the machine is suitable for high hardness material
such as carbon steel,stainless steel,aluminum alloy and other materials.
It includes groove processing for high degree of smoothness of beveling
machine.
Technical Parameter
1. Feed torque is improved again,More stable processing performance,The smooth finish of the groove
reaches Ra3.2-6.3
2. The groove angle of the equipment can be adjusted freely between 30° and 60°.
3. easy to use,Easy to learn,Ordinary workers can operate multiple devices at the same time
4. Single maximum slope width 10mm,Up to 18mm multiple times
5. Milling cold working method,The processed groove surface is not oxidized,Stainless steel groove can
be welded without pickling
6. Can be processed for small and medium plates,Knife tray with 4 blades,Each group can process 800-
1200m,Very low consumables
| PB-10D | |
| Power Supply | AC 380V 50HZ |
| Power | 2600W |
| Spindle Speed | 1440r/min |
| Feed Speed | 0~1500mm/min(Adjustable) |
| Bevel Width | 1~18mm |
| Maximum Milling Width | 10mm |
| Bevel Angle | 15°~75°(Adjustable) |
| Clamp Thickness | 2~40mm |
| Clamp Width | >20mm |
| Net Weight | 80Kg |
| Processing Materials | Carbon Steel, Stainless Steel, Aluminium Alloy, Etc |
Product description and main performance
This machine is also called stationary edge milling machine, mainly using the milling principle of small
plates need large groove milling edge and dedicated to the development of new products. Table edge
milling machine product single processing edge milling width of 10 mm, the maximum processing to 18mm
edge width. Compared with the general machine type, the processing capacity of table milling edge
machine is unmatched by other machine types. The machine innovatively USES the rolling driven wheel
device, which eliminates manual piling, and the material can be self-feeding after entering the material
port, making the feeding easier when the machine works. Applicable to common structural steel, stainless
steel, cast iron, hard plastics, non-ferrous metals and other materials. It is a special tool for cutting edge
of welding front end face. This machine has the advantages of smooth surface, easy to use, low labor
intensity, high efficiency and low cost. It solve that problems of flame cut, grinding of polishing machine,
large-scale milling machine, etc., the product is cheap and beautiful, and the small machine can be used
as the best partner in the edge milling operation of your small material
|
