SC/UPC Fiber Optic Adapter with OM3 OM4 Compatibility for High-Speed Data Networks

Categories Fiber Optic Adapter
Brand Name: KCO, Kocent Optec Limited
Model Number: SC/UPC-FLANGE-CAP-DX
Certification: ISO9001, RoHS
Place of Origin: Guangdong, China
MOQ: Negotiation
Price: Negotiation
Payment Terms: Western Union,T/T,L/C
Supply Ability: 500,000pcs/month
Delivery Time: 2~5 days after get payment
Packaging Details: Plastic module, carton box, wooden pallet
Type: SC/UPC
Sleeves material: Ceramic (ZrO2)
Material: Plastic
Chanel way: Duplex
Color: Blue
Repeat ability: 0.10dB
Company Info.
KOCENT OPTEC LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SC/UPC Fiber Optic Adapter with OM3 OM4 Compatibility for High-Speed Data Networks

SC/UPC Fiber Optic Adapter - Blue Duplex with Flange and Dust Cap
This high-performance fiber optic adapter (also known as fiber optic coupler) provides reliable cable-to-cable fiber connections. Available in SC/UPC configuration, it supports both single mode (UPC/APC) and multimode (PC) patch cable connections.
Key Applications
  • Data Processing Networks
  • Telecommunication networks
  • Industrial, Medical & applications
  • LANS, MANS, WANS
  • CATV systems
Product Advantages
  • Consistent quality verified through rigorous testing
  • Fully interchangeable with industry-standard devices
  • Superior low loss performance with high repeatability
  • Compliant with Telcordia 100BaseFX Technologies standards
Key Features
  • Compact, space-saving design
  • High precision alignment for optimal performance
  • Zirconia sleeve construction
  • Optional flange configuration
  • Low insertion loss and high return loss
  • Compliant with IEC, Telcordia GR 326 and JIS standards

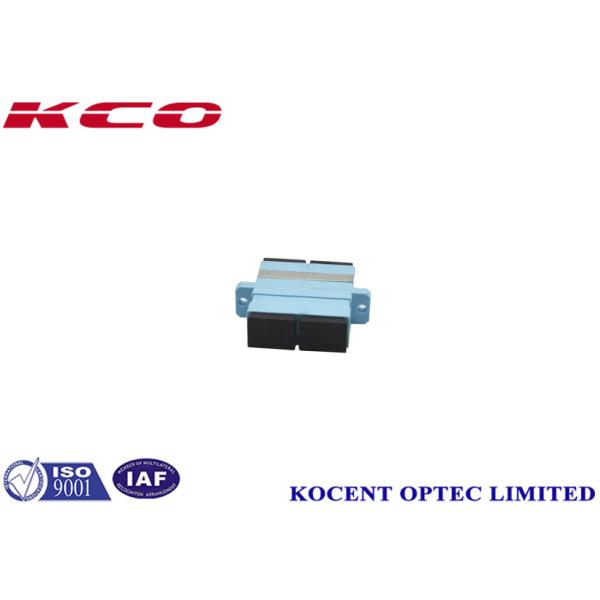

SC/UPC Fiber Optic Adapter - Blue Duplex with Flange
Technical Specifications
ParameterSpecifications
Mating Connector TypeSC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber TypeSingle Mode | Multimode
Adapter ColorBlue, green, metallic | Beige, Metallic
Testing Wavelength1310nm,1550nm | 850nm,1300nm
Insert LossTypical≤0.15dB, max≤0.2dB
Repeatability≤0.10dB
Exchangeability≤0.20dB
Durability1000Mating, max≤0.20dB
Housing MaterialPlastic or metal
Operating Temperature-20°C~+70°C
Storage Temperature-40°C~+85°C
Alignment SleeveCeramic (ZrO2) or customized
Channel NumberSimplex, duplex, quad
Reliability Testing
Test NameAdditional Insertion LossAdditional Return Loss
Mechanical durability<0.2dB<5dB
Repeatability<0.2dB<5dB
Lock strength<0.2dB<5dB
Low strength<0.2dB<5dB
High temperature<0.2dB<5dB
Steaming<0.2dB<5dB
Temperature cycle<0.2dB<5dB
Vibration<0.2dB<5dB
Drop<0.2dB<5dB
Customization Services
We offer OEM/ODM services to brand products with your logo on cables, packaging, labels, or any other visible components.
Packaging & Shipping
  • Standard export packaging options
  • Carton box, wooden box, or wooden pallet configurations
  • Shipping via international express (UPS, TNT, DHL), air freight (CA, AA, EA), or sea transport
