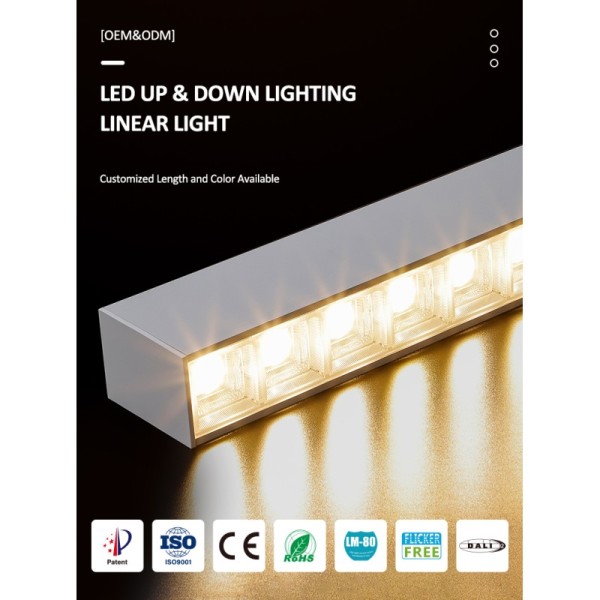

Dimmable LED Linear Light Fixture with 85 Degree Beam Angle
This LED Linear Light is engineered for modern commercial and
architectural lighting applications, including offices, retail
stores, educational facilities, healthcare environments, and public
buildings.
Featuring an advanced low-glare optical system with UGR <19 and luminous efficacy up to 190 lm/W, it delivers comfortable, energy-efficient illumination while
reducing visual fatigue. The innovative direct and indirect
lighting design enhances lighting uniformity, and the modular
linking system supports straight, L, T, and X configurations for
flexible installations.
Available with multiple dimming protocols, smart wireless control,
selectable CCT and power options, as well as dedicated sensor and
emergency module compatibility, it provides a versatile lighting
solution for a wide range of professional lighting projects. Backed
by a 5-year warranty, it ensures reliable long-term performance.
Product Features
- Latest Low-Glare Optical Design - UGR<19 for comfortable visual performance and reduced glare
- High Luminous Efficiency - Up to 190 lm/W for maximum energy savings
- Direct & Indirect Lighting - Provides uniform illumination with improved visual comfort
- Quick Seamless Linking - Metal block and spring-lock structure enables fast installation
- Flexible Modular Connection - Supports Straight, L, T, and X connectors for customized
lighting layouts
- Sensor & Emergency Ready - Independent box for easy integration of sensors and emergency
modules

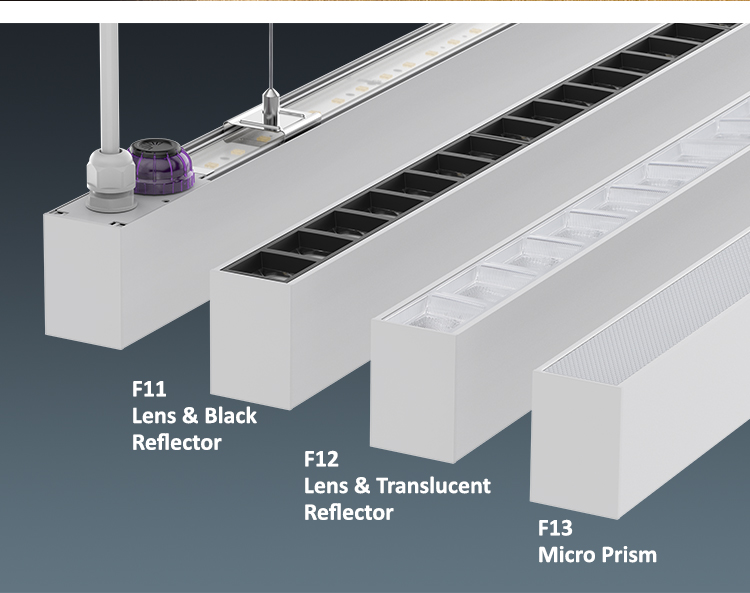

- Multiple Reflector Options - White and black reflectors suit different interior styles
- Selectable CCT - Available in Single CCT or Dual CCT versions
- Optional DIP Switches - On-board CCT and power selection for project flexibility
- Multiple Control Options - Triac, 0-10V, DALI, and Zigbee 3.0 (Tuya App) smart wireless
control
- 5-Year Warranty - Reliable quality for long-term commercial and architectural
applications
Technical Specifications
| Color Temperature | 3000K / 4000K / 5000K / 6000K / CCT Changeable |
|---|
| Dimmable | Triac / 0-10V / DALI / Smart Wireless Control (Zigbee 3.0 Tuya App) |
|---|
| CRI | CRI > 80 |
|---|
| UGR | UGR < 19 |
|---|
| IP Rating | IP20 |
|---|
| SDCM | < 5 |
|---|
| Beam Angle | 80° (Lens) / 90° (Micro Prism) |
|---|
| Input Voltage | AC220-240V, 50-60Hz |
|---|
| Working Temperature | -20℃ to +40℃ |
|---|
| Warranty | 5 Years |
|---|
Key Features
- CCT Changeable
- Power Adjustable
- Direct and Indirect Lighting
- Seamless Linking
- Anti-Glare Technology
- High Efficiency
- Emergency Function
- Sensor Integration
Frequently Asked Questions
What control systems are available for this LED linear light?
Our LED Linear Light supports multiple control options, including Non-Dimmable, Triac Dimming, 0-10V Dimming, DALI, Zigbee 3.0, and
Tuya Smart App. These options make it suitable for both standard and intelligent
lighting control systems.
Can multiple fixtures be connected together?
Yes. The fixture features a modular linking system with Straight, L, T, and X connectors, allowing you to create customized linear lighting layouts for
offices, retail stores, schools, and other commercial applications.
Is this LED linear light suitable for office environments?
Absolutely. With an advanced optical design offering UGR <19 and optional Direct/Indirect Lighting, it provides low-glare, uniform illumination that helps reduce eye
strain and improves visual comfort in offices, conference rooms,
classrooms, and other workplaces.
Do you provide OEM/ODM service and warranty?
Yes. We offer OEM & ODM customization, including housing color, size, CCT, power, dimming options,
branding, and packaging. All products are backed by a 5-year warranty and undergo strict quality control before shipment.
