| Categories | QFN IC SOCKET |
|---|---|
| Model Number: | QFN32 burn in socket |
| Place of Origin: | china |
| MOQ: | 1pcs |
| Price: | ＄65/pcs（Free shipping - regular logistics） |
| Payment Terms: | T/T |
| Supply Ability: | 3-5 work days |
| Delivery Time: | 3-5 work days |
| Packaging Details: | 13*8*9 cm |

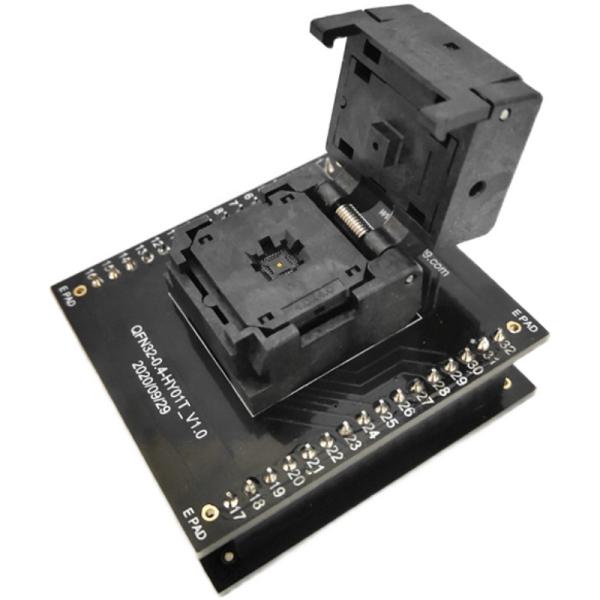

| Type: | QFN32 burn in socket |
| Pin: | 32 |
| Pin Pitch: | 0.4 mm |
| Applicable Chip Size: | 4*4 mm |
| Structure: | Clamshell Structure |
Product Features:
a.Clamshell structure burn in socket
b.Adopting engineering material for socket structure,
Strength is high ,lifetime is long
c.Adopting import BeCu material for socket contact
Spring ,thickening gold-plating surface ,impedance is small elasticity is good
d.For 0.4mm pitch package
e.Thru hole design
Material & Performance:
Ø socket Body: PEI
Ø Contacts:Beryllium Copper Alloy
Ø Contact Plating:Gold over Nickel
Ø Operation Force:2.0KG min, the more PINs the greater force
Ø Contact Resistance:50mΩ max
Ø Dielectric:700V AC for 1 minute
Ø Insulation Resistance:1,000MΩ500V DC
Ø Max Current Capacity : 1A
Ø Temperature Rating:-55℃~+175 ℃
Ø Life Span 15,000 Times (Mechanical)
2. Specification and Dimension :
a) Type : QFN32
b) Pin pitch : 0.4 mm
c) Pin Count : 32
d) Applicable IC Body Dimension : 4*4 mm
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you have want batch purchase , please contact us for inquiry , we can offer you a cheaper bulk price !
|
