Automatic Ethylene Oxide Steriliser for Hospital and Clinic Humidity Range 0-99%RH

Categories	ETO EO sterilizer
Applicable Industries:	spice, medical
Showroom Location:	Egypt, Turkey, United States, Saudi Arabia, Indonesia, Pakistan, India, Russia, South Korea, Uzbekistan, Japan
Video outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Hot Product 2024
Warranty of core components:	1 Year
Core Components:	PLC, chamber
Condition:	New
Place of Origin:	Zhejiang, China
Brand Name:	hzbocon
Voltage:	customization
Power:	customization
Weight:	2000 KG
Dimension(LWH):	customization
Warranty:	2 years
Key Selling Points:	Automatic
Volume:	1/2/,3/4.5/6/11/15/20 etc
Carton materials:	SUS 304 stainless steel
Temperature range:	0~100℃
Humidity range:	0~99%RH
Working pressure:	-80kPa~+80kPa
Max.power of electrical heating:	9~60 kW
Max.power of the humidifier:	3~9 kW
Power supply:	3-phase,4-line 380V; 50Hz
Packaging Details:	Wooden cases
Supply Ability:	1 Set/Sets per Month High Quality Anti-virus Disinfection Channel Sterilization Equip
Price:	$20,000.00 - $48,000.00/sets

Contact Now

Add to Cart

Company Info.

Hangzhou Bocon

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Automatic Ethylene Oxide Steriliser for Hospital and Clinic Humidity Range 0-99%RH

Products Description

Technical Information	Specifications
Machine Type	ETO sterilizers / ETO Sterilization chambers / EO gas Sterilizer
	1 Sterilizer Chamber, 1 Control system . Vaporizer, Local Control Box, Door controller, 1 IPC, 1 Screen, 1 peumatic control box, 1 Funtional water heating tank
Chamber Capacity	stainless steel SUS304, 1 to 100 m3, The size can be adjusted according to customer's requirement
Chamber Type	Rectangular type
Doors Type	Pneumatic Sliding door, Pneumatic Revolving Door ,Lifting Door: SUS304
Chamber Material	Stainless steel construction in chamb er (grade 304) (316 or 321 can choose)
Heating components (main part)	1、frame：angle steel 40×40×4
		2、heating water tank ：stainless steel
		3、housing of tank ：stainless Steel
		4、electronic heater ： stainless steel electrical heating pipe
EO feeding device	connecting pipe , pressure gage，mannual valve , Filter
EO vaporizer	EO vaporizer
Free Service	sterilizers Station 3D Design
Option	Preheating room， aeration room， Automatic transmission

Contral System Specification

system design standard	EN1422、ISO11135-2014
system control mode	Soft mannual & Full- Automatic
open/close Door way	sliding door
door qty	two
data record way	interval mode , warning triggered mode
historical curve record way	continuous time interval mode
data save time	10 year（If hard drive is not damaged）
recirculated water connector	both cabinet and door with one way in and one way out
circulation water jacket replacement time	<5 minutes
temperature sensor precision	display Range: 0-100℃;resolution: 0.1℃
temperature control precision	cabinet wall temperature difference within ±5℃
temperature control precision		cabinet inside temperature difference is within ±3℃
pressure sensor precision	display Range : -100-+150Kpa，resolution: 0.1Kpa
vaccum control mode	continuous mode and stepping mode ( proportional valve regulating mode is choosable)
vaccuming time	<30minutes from 0 to -90KPa
humidity sensor precision	display range: 0-100%RH(no-condensing) , resolution 0.1%RH
control time range	0-99hours, sterilizing time resolution 1min
cabinet water volume auto detecting	yes ，system shows and controls the water volume and feeds water automaticly.
steam heating connector	yes, auto control
steam detecting	yes, displaying and warning when the steam is not enough
vaccum pump detecting connector	yes, displaying and warning when the pressure is not enough
steam pressure detecting connector	yes, displaying and warning when the pressure is not enough
humidifing connector	yes ，humidifying automaticly by pulsatile mode
humidifying way	pressure difference or sensor
Nitrogen protection system connector	yes , auto control
tail gas treatment connector	yes , auto control
in-door and out-door air exhausing connector	yes , auto control

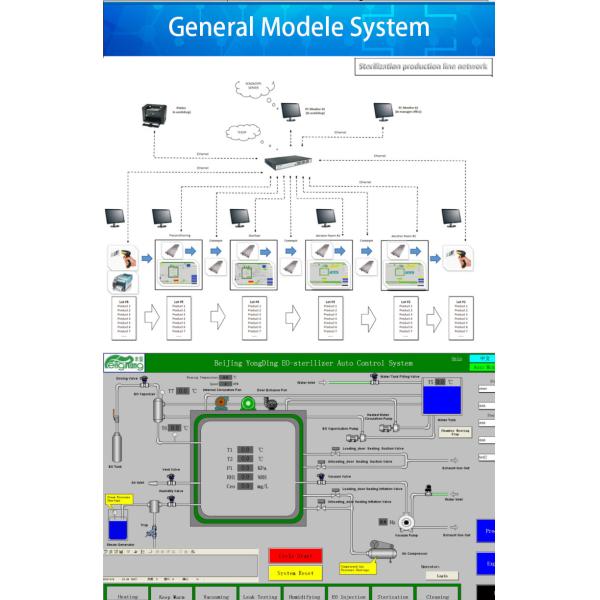

data record and dealing mode	PC monitoring software and special data processing software for sterilization
support recipe	mixed gas process, pure EO gas( not suggested)
support EO gas	any kind of EO gas. Normal ones:30%EO +70%CO2 ,80%EO +20%CO2, 90%EO+10% CO2, 100% EO(work with N2); Strengthen(pay extra)type: 10%EO +90% CO2, 20%EO + 80%CO2.
over high temperature limit protection	yes
over high pressure limit protection	yes
EO under low temperature limit protection	yes
……	systen has about 100 warning and reminding funtions
