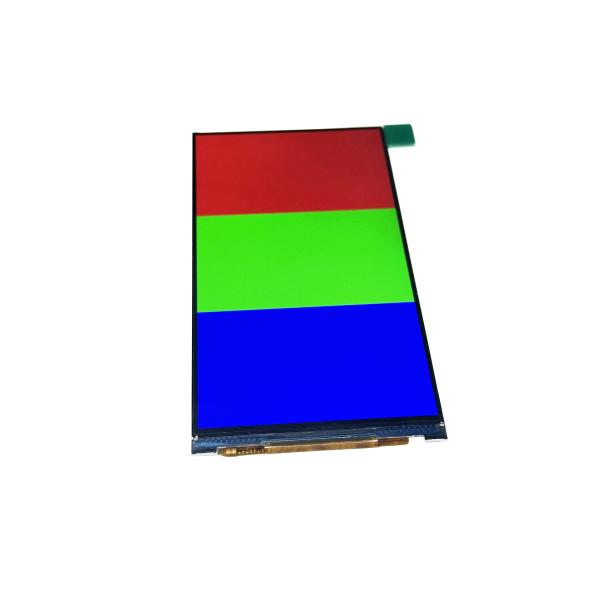

Name: 5 Inch TFT LCD Display Module 720x1280 MIPI Interface for Handheld Devices
Brand: GENYU
Price: 10 USD

Home > Water Treatment >

5 Inch TFT LCD Display Module 720x1280 MIPI Interface for Handheld Devices

Categories	TFT LCD Display Panel
Place of Origin:	Guangdong, China
Brand Name:	GENYU
MOQ:	100
Price:	$10-15
Display Size:	5 INCH
Resolution:	720*1280
Operating Temperature:	-20~70℃
Backlight Type:	LED
Communication Interface:	MIPI interface/25 pin
Driver IC:	HX8394F
LCD Type:	TFT Transmissive
Number of Dots:	720x (RGB) x 1280
Pixel Arrangement:	RGB Vertical Stripe
Active Area:	62.1(H) x 110.4(V) mm
Viewing Direction:	ALL
Module Size:	119.3(H) × 65.3 (H) *1.71 mm
Mounting Type:	PCB
Screen Size:	5"
System Interface:	MIPI interface/25 pin

Contact Now

Add to Cart

Company Info.

Shenzhen Genyu Optical Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

5 Inch TFT LCD Display Module 720x1280 MIPI Interface for Handheld Devices

LCD Type	TFT Transmissive
Number of Dots	720x (RGB) x 1280
Pixel Arrangement	RGB Vertical Stripe
Active Area	62.1(H) x 110.4(V)
Viewing Area (W*H)	/
Viewing Direction	ALL
Driver IC	HX8394F
Module Size(WHT)	119.3(H) × 65.3 (H) *1.71
Approx. Weight	TBD
Back Light	White LED
System interface	MIPI interface/25 pin

Established in 2003, Shen Zhen Genyu Optical Co.,Ltd. mainly R&D, production and sales of LCD display、OLED and TFT LCD Module. Professional customized LCD Screen (including TN、HTN、STN、FSTN、VA（BTN）)、COG and COB LCD Modules

Genyu's plant area is about 30000 square meters and has 1,000 employees, including 36 technicians, 16 developers and 60 QC. It has a core team of high-quality talents including LCD experts, LCD process engineers, LCM R&D engineers, B / L and FPC engineers. By virtue of modern automation plant equipment, advanced technology and a strong R&D team, we have made

We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements, At present, the annual production capacity of the factory has reached 100 million LCD screens, 30 million LCMS and 40 million B / L.

Air shower

Nearly 6000 square meters of dust-free workshop, with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance of workshop is equipped with air shower, which can effectively and rapidly remove dust, hair, hair chips and other sundries attached to clothes, and reduce the pollution problems caused by personnel entering and leaving the workshop.

1. Custom Segment LCD display

Genyu has produced tens of thousands of segment LCDs. Please tell us your requirements for LCD, we will recommend similar LCD for you, or design LCD according to customer's requirements. Genyu has TN STN HTN FSTN VA/BTN LCD display,

Erica Tan

Tel: 0755-27856531 Mobile: +86-15919421997 Wechat: 15919421997 Skype: live:gyerica_1 Http:www.genyulcm.com E-mail:Erica@szgenyu.com

2. Dot Matrix Graphic LCD display

Genyu has 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128,160x160....320x240 dot matrix LCD display.

3. AMOLED display

Genyu has mini size OLED Display, 0.42" 0.49" 0.66" 0.78" 0.87" 0.91" 0.96" 1.3" 1.54" 2.08" 2.3" 2.4" OLED Display

4. TFT LCD display

Genyu has HD Full color TFT LCD Display, 0.91" 1.0" 1.28" 1.3" 1.44" 1.54" 1.77" 2.0" 2.2" 2.4" 2.8" 2.95" 3.13" 3.2" 3.5" 4.3" 7" 10.1" TFT LCD Display

-Standard size -Standing stock -Samples available

Wide range of applications

> Wearable Device

> Medical

> Financia

> Industrial

> New Enery

> Communication

> Instrumentation

LCD Display

All products have to pass strict inspection before packaging.

Plastic Containers

Each COG LCD product has a custom Plastic Containers. Professional blister Containers can fix each piece of LCD products.

Cartons

Carton size: 398 x 331 x 430 mm

The weight is about 17 KG.

Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.

Hi, I am Erica. We have focused on micro lcd panel for 20 years.

WHAT CAN WE OFFER?

a) Small orders will be acceptable.
b) High quality, durable-competitive pricing.
c) Mass production leadtime would be guaranteed.
d) Free technical services will be provided.
e) Each order will have enough spares.

Pls feel free to contact us,my friend!
