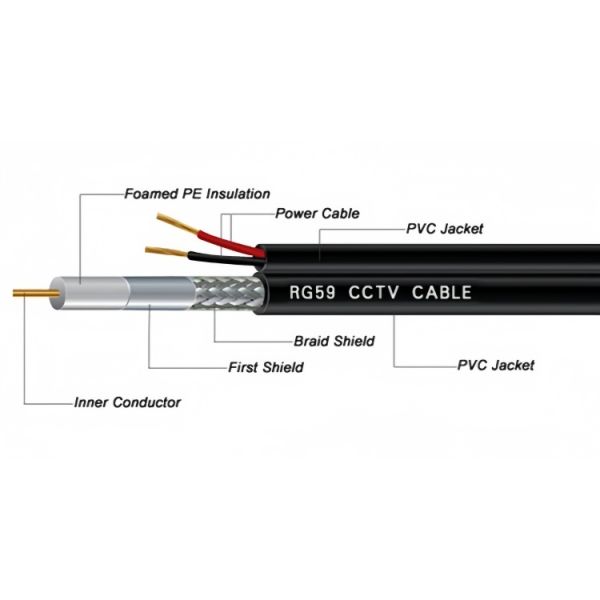

Enhance your audiovisual setup with our premium RG59 Siamese Coaxial Cable designed to deliver superior signal integrity and durability. Perfect for both indoor and outdoor installations, it ensures reliable performance in any weather condition.
Various Lengths and Colors: Attached 2 Stranded 18 AWG 7x0.385mm Black/Red Power Cable. Available in 1000/500 Ft Black and White color.
CCTV Security Systems: Connect surveillance cameras with RG59 for reliable video feeds and effective monitoring.
Satellite Dish Connectivity: Ensure clear reception of satellite channels by connecting your dish to the receiver with RG59.
| Item | Coaxial Cable |
| Material | Bare Copper / Copper Clad Steel / CCA |
| Diameter | 1.02+0.01mm |
| Material | Foam PE |
| Diameter | 4.57+0.05mm |
| First layer | Aluminum Foil |
| Second layer | 40%-95% Al Braid Coverage |
| Material | New PVC |
| Nominal O.D | 6.90+0.05mm |
| Color | Black / Different color is available |
| Sparker Test | 4000VAC |
| Impedance | 75+3 Ohm |
| Capacitance | 54+3pF/m |
| Velocity of Propagation | 85% |
| Return Loss | 20dB min (5-2300MHz) |
| Type | COAXIAL |
| Number of Conductors | 8 |
| Conductor Type | Solid |
| Model Number | RG6 / RG58 / RG59 Coaxial cable |
| Brand Name | OEM |
| Place of Origin | Hebei, China |
| Length | 100m / 305m / 1000ft |
| Inner Conductor | BC / CCS for coaxial cable |
| Outdoor Conductor | Foil / Mg-Al braiding |
| Foil | Bonded AL foil |
| Braiding | 64*0.12mm / 96*0.12mm Aluminum Wire |
| Insulation | Foam PE |
| Jacket | LSZH PVC |
| Impedance | 50Ω, 75Ω |
| Durability | ≥ 500 (cycles) |
|
