BV THHN Copper Insulated Electric Wire and Cable PVC Electrical
Wires
Product Overview
High-quality electrical wires designed for industrial and
residential applications with superior performance characteristics.
BV Wire Specifications
Standard: GB/T5023-2008 (Equivalent to IEC 60227-1997)
Conductor: Oxygen-free copper core
Insulation: PVC
Available Colors: Red, yellow, blue, green, black, white, brown, two-color
(yellow-green)
Outer Sheath: PVC tapes ST2 to IEC.6
Wire Types: ZR-BV, NH-BV, WDZ-BV, THBV, FY-BV
Available Models: 0.75mm², 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm²,
35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², etc.
THHN Product Construction
- Conductor: Copper or Aluminum. Stranded uncoated copper conductors per
ASTM-B3, ASTM-B787, and ASTM-B8
- Insulation: PVC. Color-coded Polyvinyl Chloride (PVC) heat and moisture
resistant, flame-retardant compound per UL 1063 and UL83
- Color Code: Red, orange, yellow, yellow-green, blue, purple, gray, white or as
required
- Outer Sheath/Jacket: Nylon, THHN tough, polyamide, Nylon outer covering per UL 1063 and
UL 83. Slick Nylon outer jacket for easy pulling
- Conductor Type: Stranded conductor or solid conductor
BV Wire Service Performance
- Rated Voltage: 300/300V; 300/500V; 450/750V
- Long-term Working Temperature: Not higher than 70°C
- Minimum Ambient Temperature: Not lower than 0°C when laying cable
- Minimum Bending Radius: ≥ 4D for cable diameter ≤ 25mm; ≥ 6D for cable diameter > 25mm
THHN Wire Service Performance
Working Temperature: Rated drying temperature 90°C, nominal temperature 75°C wet, rated
THWN. Most THHN building wire features THHN/THWN double rating for
wet and dry applications.
When used as Type THHN, suitable for oil or cooling liquid
temperature not exceeding wet or dry places at 90°C or 75°C. When
used as MTW type, for conductors of 90°C in dry places, moist
places, or places exposed to oil or coolant not above 60°C.
Building Applications
THHN Wire represents high heat thermoplastic nylon coating.
Suitable for machine control circuit wiring or device applications.
Ideal for new configurations or rewiring at 600 volts applied, and
suitable for general use as defined by the National Electrical Code
(NEC).
Wire Type Specifications:
- TW: Flame retardant and moisture proof
- THHN: Flame-retardant and heat-resistant thermoplastic insulated
nylon sheath
- THW: Flame retardant, moisture-proof and heat-resistant
- THW-2: Flame retardant, moisture-proof and heat-resistant
- THHW: Flame retardant heat-resistant thermoplastic insulation
- THWN: Flame-retardant and heat-resistant thermoplastic insulated
nylon sheath
- THWN-2: Flame-retardant and heat-resistant thermoplastic insulated
nylon sheath
BV Electrical Wire
BV Wire Size Specifications
| Model | Voltage Level (V) | Cross-sectional Area (mm²) | Number/Diameter (mm) | Outer Diameter (mm) | Weight (kg/km) | 20℃ Conductor Resistance ≤ (Ω/km) |
|---|
| BV | 300/500V | 0.5 | 1/0.80 | 2.4 | 8.5 | 36 |
| BV | 300/500V | 0.75 (A) | 1/0.97 | 2.6 | 11.1 | 24.5 |
| BV | 300/500V | 0.75 (B) | 7/0.37 | 2.8 | 12 | 24.5 |
| BV | 300/500T | 1.0 (A) | 1/1.13 | 2.8 | 13.9 | 18.1 |
| BV | 300/500V | 1.0 (B) | 7/0.43 | 3.0 | 15 | 18.1 |
| BV | 450/750V | 1.5 (A) | 1/1.38 | 3.3 | 20.3 | 12.1 |
| BV | 450/750V | 1.5 (B) | 7/0.52 | 3.5 | 21.6 | 12.1 |
| BV | 450/750V | 2.5 (A) | 1/1.78 | 3.9 | 31.6 | 7.41 |
| BV | 450/750V | 2.5 (B) | 7/0.68 | 4.2 | 34.8 | 7.41 |
| BV | 450/750V | 4 (A) | 1/2.25 | 4.4 | 47.1 | 4.61 |
| BV | 450/750T | 4 (B) | 7/0.85 | 4.8 | 50.3 | 4.61 |
| BV | 450/750V | 6 (A) | 1/2.76 | 4.9 | 67.1 | 3.08 |
| BV | 450/750T | 6 (B) | 7/1.04 | 5.4 | 71.2 | 3.08 |
| BV | 450/750V | 10 | 7/1.35 | 7.0 | 119 | 1.83 |
| BV | 450/750V | 16 | 7/1.70 | 8.0 | 179 | 1.15 |
| BV | 450/750V | 25 | 7/2.14 | 10.0 | 281 | 0.727 |
| BV | 450/750V | 35 | 7/2.52 | 11.5 | 381 | 0.524 |
| BV | 450/750V | 50 | 19/1.78 | 13.0 | 521 | 0.387 |
| BV | 450/750V | 70 | 19/2.14 | 15.0 | 734 | 0.268 |
| BV | 450/750V | 95 | 19/2.52 | 17.5 | 962 | 0.193 |
| BV | 450/750V | 120 | 37/2.03 | 19.0 | 1180 | 0.153 |
| BV | 450/750V | 150 | 37/2.25 | 21.0 | 1470 | 0.124 |
| BV | 450/750V | 185 | 37/2.52 | 23.5 | 1810 | 0.0991 |
| Nominal Sectional Area mm² | Conductor No/Dia. Mm | Nominal Insulated Thick mm | Max Overall Dia. Mm | Conductor Resistance at 20°C | Min Insulated Resistance at 70M Ω/km | Weight Kg/km |
|---|
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 0.011 | 19.2 |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | 0.01 | 20.6 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 0.01 | 30.8 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 0.0085 | 45.5 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 0.007 | 65 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 0.0065 | 110 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 0.005 | 170 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 0.005 | 270 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.004 | 364 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.0045 | 500 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.0035 | 688 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.0035 | 953 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.0032 | 1168 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.0032 | 1466 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.0032 | 1808 |

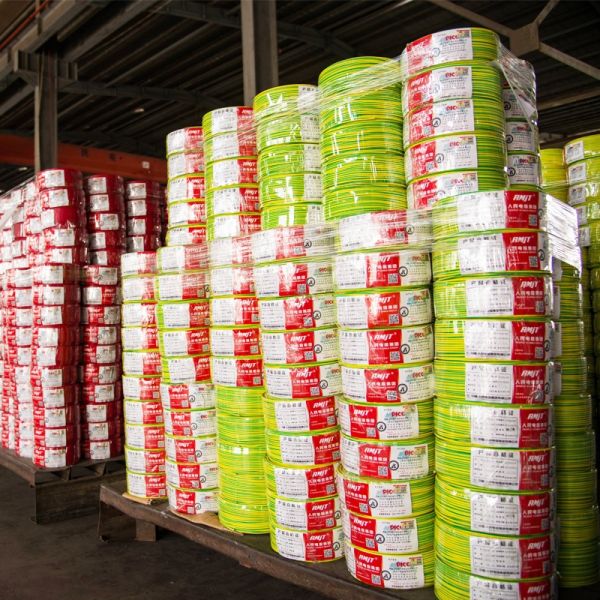

Electric Wire Model Selection Guide
- Lighting: Generally uses 1.5 square single core hard wire (BV1.5), divided
into live wire and neutral wire by color
- Sockets: Generally use 2.5 square single-core hard wires (BV2.5), with air
conditioners above 3 HP using 4 square (BV4) or larger single-core
wires
- Home Bus: Generally uses 6 square meters (BV6) or larger single-core wire
- Consultation: Please consult online customer service for specific configuration
and quantity requirements

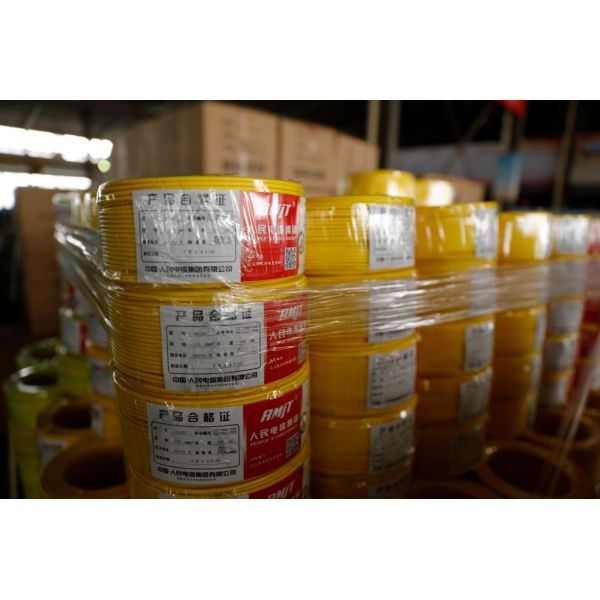

THHN Electrical Wire
THHN Wire Size Specifications
| Spool/Reel Length | Sizes | THHN Colors |
|---|
| 500 ft | 14 AWG | Black, White, Red, Blue, Green, Yellow, Orange, Brown, Purple,
Gray, Blue/White, Green/Yellow |
| 500 ft | 12 AWG | Black, White, Red, Blue, Green, Yellow, Orange, Brown, Gray,
Green/Yellow |
| 500 ft | 10 AWG | Black, White, Green, Yellow, Orange, Brown, Green/Yellow |
| 500 ft | 8 AWG | Black, Green, Green/Yellow |
| 500 ft | 6 AWG | Black |
| 500 ft | 4 AWG | Black |
| 2,500 ft | 14 AWG | Black, White, Red, Blue, Green, Yellow, Orange, Brown, Purple,
Blue/White |
| 2,500 ft | 12 AWG | Black, White, Red, Blue, Green, Yellow, Orange, Brown |
| Nominal Area (mm) | Conductor Structure (Φ/mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | Max O.D (mm) |
|---|
| 0.2 | 12/0.15 | 0.35 | 0.15 | 1.7 |
| 0.3 | 16/0.15 | 0.35 | 0.15 | 1.9 |
| 0.4 | 23/0.15 | 0.35 | 0.15 | 2.1 |
| 0.5 | 28/0.15 | 0.35 | 0.15 | 2.15 |
| 0.6 | 19/0.20 | 0.35 | 0.15 | 2.2 |
| 0.75 | 19/0.23 | 0.35 | 0.15 | 2.3 |
| 1.0 | 19/0.26 | 0.35 | 0.15 | 2.5 |
| 1.2 | 19/0.28 | 0.40 | 0.15 | 2.6 |
| 1.5 | 19/0.32 | 0.40 | 0.15 | 2.9 |
| 2.0 | 49/0.23 | 0.40 | 0.15 | 3.4 |
| 2.5 | 49/0.26 | 0.40 | 0.15 | 3.9 |
| 3.0 | 49/0.28 | 0.45 | 0.15 | 4.0 |
| 4.0 | 77/0.26 | 0.45 | 0.15 | 4.8 |
| 5.0 | 98/0.26 | 0.45 | 0.15 | 5.1 |
| 6.0 | 77/0.32 | 0.45 | 0.18 | 5.6 |
| 8.0 | 98/0.32 | 0.50 | 0.18 | 6.0 |
| 10 | 126/0.32 | 0.50 | 0.18 | 7.1 |
| 13 | 133/0.26 | 0.60 | 0.22 | 7.6 |
| 16 | 209/0.32 | 0.60 | 0.22 | 9.0 |
| 20 | 247/0.32 | 0.60 | 0.22 | 9.4 |
| 25 | 209/0.39 | 0.60 | 0.22 | 10.4 |
| 35 | 285/0.39 | 0.60 | 0.22 | 11.0 |

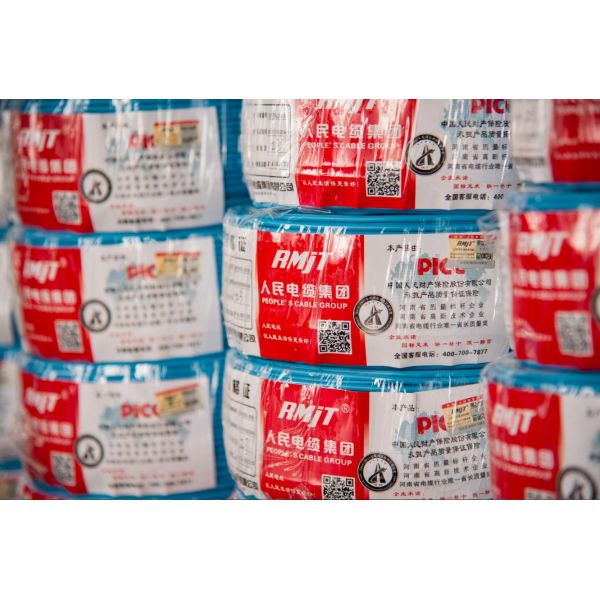

THHN Wire Features
Superior Safety: Nylon thread provides anti-termite, anti-rat bite protection with
excellent heat resistance (up to 200°C)
Environmentally Friendly: Harmless to surrounding environment, green and eco-friendly for
home decoration equipment power supply and lighting
Easy Installation: Light weight with smooth appearance. Nylon's lubricity prevents
scratching during threading and facilitates easy pipe laying
Durability: High mechanical strength with excellent wear resistance, cold
resistance, surface hardness, bending strength, impact resistance,
chemical resistance, oil resistance, gasoline resistance and
self-lubrication
