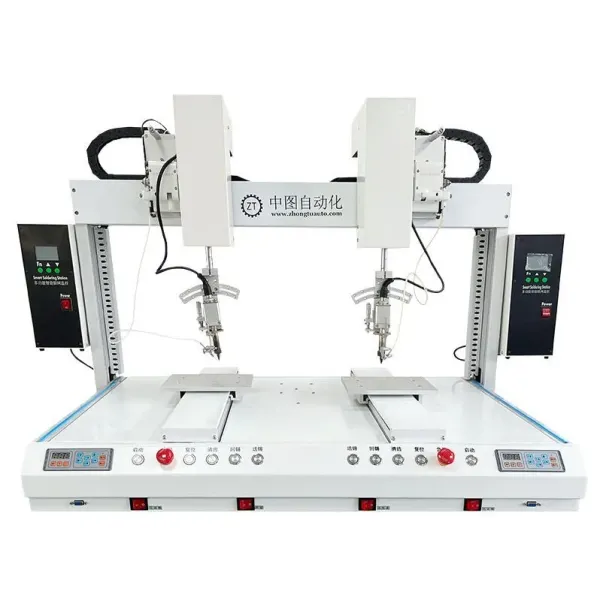

Automatic PCB Soldering Machine 5 Axis Dual Heads Desktop Soldering
Robot
Product Overview
Advanced 5-axis dual-head desktop soldering robot designed for
precision PCB soldering applications in manufacturing plants, SMT,
and DIP processes.
Key Specifications
| Name | Automatic Soldering Robot |
| Place of Origin | Shenzhen, China |
| Applicable Industries | Manufacturing Plant, SMT, DIP |
| Weight | 85Kg |
| Voltage | 220/110V 50~60Hz |
| Dimensions | 1000*750*850mm |
| Solder Wire | 0.6~1.5mm solder wire |
| Temperature Accuracy | ±3° |
| Repeat Accuracy | ±0.02mm |
Technical Specifications by Model
| Model | ZT-HXJ041R | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | Customization |
|---|
| Solder Power | 200W | 200/400w 600W | 200/400W | 200/400/600W | Available |
| X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s max |
| Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s max |
| Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s max |
| R Axis | 360° | 360° | 0 | 360° | ±0.05° Error |
| Weight | 58Kg | 68Kg | 75Kg | 85Kg | Customized |
| Size | 600*750*850mm | 800*750*850mm | 850*750*850mm | 1000*750*850mm | To order |
General Specifications
- Heating Temperature Range: 0-550ºC
- Tin Wire Diameter: φ0.6mm-1.5mm
- Teaching File Capacity: 256MB, up to 999 files, single file up to
1000 points
- Air Pressure: 4-5kg/cm²
- Temperature Errors: ±2°
Product Images
Manufacturer Information
Shenzhen Zhongtu Automation Technology Co., Ltd. is an automation
equipment enterprise integrating R&D, design, manufacturing,
debugging and after-sales service. The company specializes in
tooling fixtures, hardware jigs, machining, non-standard mechanical
parts processing, production line optimization solutions, automated
production line equipment transformation, and non-standard
automation equipment design and manufacturing.
Industry Applications
Our products are successfully used in electronics, touch screens,
LCD/LED, mobile phones, and communication electronics manufacturing
fields.
Our Advantages
- Factory manufacturers with direct pricing
- Reduce overall production costs
- Improve automation level
- Enhance information integration
- Improve product yield rates
- Provide advanced system solutions for automation equipment
Industry Presence
Packaging & Shipping
Customer Services
| Pre-Sale Services | In-Sale Services | After-Sale Services |
|---|
- Product Introduction
- Technical Communication
- Remote consulting service
| - Product demonstration
- Detailed usage instructions
- Comprehensive customer support
| - Video support service
- 1-year full equipment warranty
- 3-year warranty for guide rail/motor/control parts
|
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2015, with 11-50
professionals in our office.
How do we guarantee quality?
Always provide pre-production samples before mass production and
conduct final inspection before shipment.
What products do we offer?
Soldering machines, precision spot welding machines, glue
dispensers, and screw machines.
Why choose us over other suppliers?
We provide ultra-professional service and technical expertise to
deliver high-performance equipment at competitive prices.
What services do we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment
Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal,
Cash.
What is your warranty policy?
We provide 1-year warranty for unit machine and 3-year warranty for
main board. Contact us for more details.
Can I purchase samples?
Yes! You are welcome to place sample orders to test our superior
quality and service.
Are you a trading company or manufacturer?
We are professional manufacturers of automation machines since
2015.
