8.0 Inch HD INCELL TFT LCD Display Screen with 800*1280 Resolution
and 330cd/m² Luminance for Tablet
Product Overview
High-performance 8.0-inch HD TFT LCD display with incell
technology, designed for tablets requiring excellent visibility and
reliability.
Technical Specifications
| Parameter | Specification |
|---|
| Application | Tablet |
| Number of pixels | 800*1280 pixels |
| Active Area | 107.64*172.224mm |
| Module Outline | 114.6*184.1*2.6mm |
| Aspect Ratio | 16:10 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 800MIN, 1200 (Typ) |
| NTSC | 59.1% (Typ) |
| LCM Brightness | 330cd/m² (Typ) |
| Interface | MIPI |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
Key Features
- High Resolution: 800×1280 pixel display for sharp image quality
- Wide Viewing Angles: 80° viewing angle in all directions
- Bright Display: 330cd/m² typical brightness for excellent
visibility
- Slim Profile: Only 2.6mm module thickness for space-constrained
applications
- Wide Temperature Range: Operates from -20℃ to +70℃
The JT-8.0IPSHDINCELL is an 8-inch full TFT-LCD display with a high
resolution of 800 × 1280 pixels (800 horizontal by 1280 vertical
pixel array). This model supports a MIPI interface and operates
with a supply voltage (VCC) ranging from 3.0V to 3.6V to drive the
LCD panel. It is suitable for Tablet, POS, PDA, smart home system,
embedded systems, GPS devices, medical instruments, industrial
machinery, and security applications that require high-quality TFT
displays with vibrant color reproduction.
The JT-8.0IPSHDINCELL utilizes an IPS-type TFT LCD with full
viewing angle. It offers a typical brightness of 330 cd/m² and can
operate in temperatures ranging from -20 ℃ to +60 ℃, with a storage
temperature range of -20 ℃ to +70 ℃.

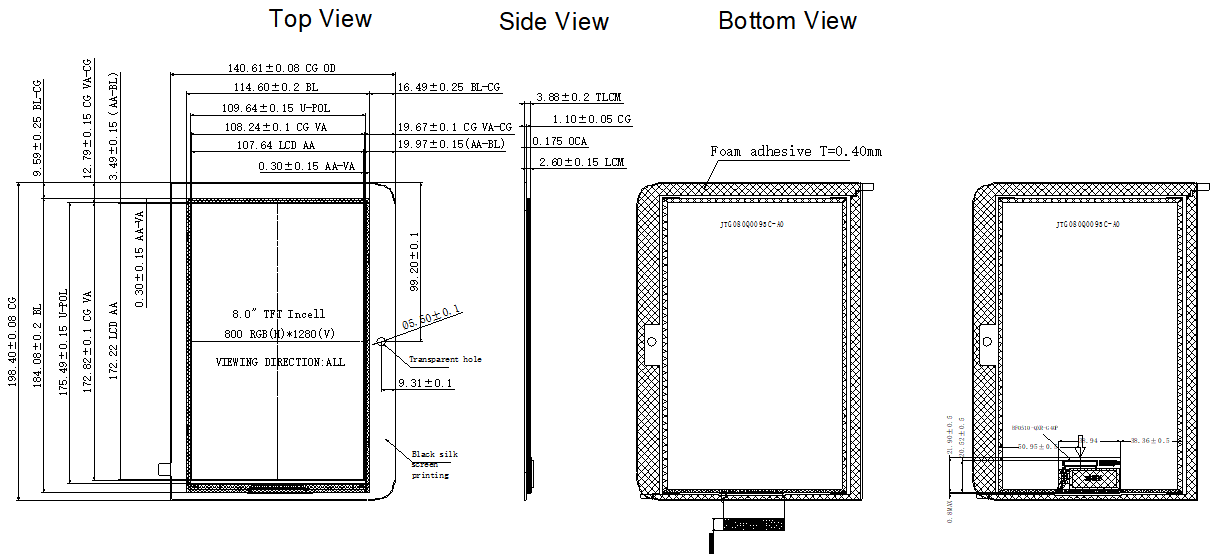

Product Images
Frequently Asked Questions
Q1: Can I place a sample order?
JINGTAI: Yes, we welcome sample orders for quality testing and
verification. Mixed samples of different product models are
acceptable.
Q2: What is the lead time?
JINGTAI: For off-the-shelf products: Samples are available
immediately from stock. Sample remaking takes 1-1.5 weeks, and mass
production requires 4-6 weeks. For design-in products: We provide a
counter drawing proposal within 2-3 days. Sample production takes
about 2-3 weeks after drawing approval. Trial-run or mass
production begins within 5-6 weeks after sample approval.
Q3: Is there a MOQ for samples and production orders?
JINGTAI: We have low MOQ requirements. Sample orders of 3-5 pieces
are acceptable. For mass production, the standard MOQ is 1,000
pieces per lot. We also support quantities below the mass
production MOQ for trial-run or pre-production orders.
Q4: How are the goods shipped, and how long is the delivery time?
JINGTAI: We ship via DHL, UPS, FedEx, or TNT, with delivery
typically taking 5-7 days. Air freight and sea shipping are also
available.
Q5: What is the procedure for ordering an LCD module?
JINGTAI: First, provide us with your requirements or application
details. Second, we provide a quotation based on your needs or our
recommendations. Third, you confirm the samples and place a deposit
for the formal order. Finally, we proceed with production.
Q6: Can I have my logo printed on the LCD product?
JINGTAI: Yes. Please formally notify us during the design stage,
and we will produce samples with your logo for testing and
approval. Mass production will follow the approved samples.
Q7: Do you provide a product guarantee?
JINGTAI: Yes, we offer a 1-year warranty on our products.
Q8: How do you handle faulty products?
JINGTAI: First, our products are manufactured under a strict
quality control system, with a defective rate of less than 0.2%.
Second, during the warranty period, we will replace faulty units
with new ones for small quantities along with new orders. For
defective batch products, we will repair and return them, or
discuss solutions--including recall--depending on the actual
situation.
