Triple Type Air Spring FT 76-20 DS ContiTech Air Actuator for Industrial Machines

Categories Contitech Air Spring
Brand Name: AIRSUSTECH
Model Number: 3B6×3T
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1 pieces
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Supplier: AIRSUSTECH
Screws Type: 4×M10
Port Size: G1/2
Norgren: M/31063
Number of Ply Bellows: 3
Operation: Gas-Filled
Working Temperature: -40℃+70℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Triple Type Air Spring FT 76-20 DS ContiTech Air Actuator for Industrial Machines

Triple Type Air Spring FT 76-20 DS ContiTech Air Actuator for Industrial Machines
Triple Type Air Spring FT 76-20 DS ContiTech Air Actuator for Industrial Machines
What Is An Industrial Air Spring?
An industrial air spring is a highly engineered flexible component that uses compressed air contained within a durable, reinforced rubber bellows to provide precise load support, vibration isolation, and motion control in machinery and industrial equipment. Think of it as a heavy-duty, controllable air bag designed for factory and machinery applications, not for vehicle suspension.
The Details of AIRSUSTECH B6 ×3T
SpecificationValue
Natural Height193.5 mm
Center Distance Diameter127 mm
Cover Plate Width153.5 mm
Static Diameter of Rubber Bellows159 mm
Air ConnectionG1/2
Screw Nuts Type4×M10
Screws Length25 mm
Materialrubber and steel
Contitech FT 76-20 DS Specifications
  • Minimum Height: 95 mm
  • Maximum Height: 285 mm
  • Center Distance Diameter: 127 mm
  • Cover Plate Width: 153.5 mm
  • Maximum Outer Diameter: 178 mm
  • Installation Space: 195 mm
  • Screws Type: 4×M10
  • Pneumatic Connection: G1/2
AIRSUSTECH 3B6 ×3T Alternative Items
Contitech FT 76-20 DSFirestone W01-R58-4095Dunlop Pneuride 6''×3
Contitech FT 7620 DSFirestone W01R584095Dunlop Pneuride 6'×3
Contitech FT 76 20 DSFirestone W01 R58 4095Dunlop Pneuride 6×3
Firestone WO1-R58-4095Dunlop Springride SP2861
Firestone WO1R584095Norgren M/31063
Firestone WO1 R58 4095Norgren M31063
Norgren M 31063
Parker 9109007
The Applications of Industrial Air Bags
  • Centrifugal Separators
  • Large Drying Machines
  • Vibratory Conveyors
  • Electronic Equipment
  • Compressors
  • Conveyor Loading Points
  • Textile Looms
  • Rotary Shaft Actuators
  • Conveyor or Transfer Systems
  • Vertical Lift Force for Platforms and Rotating Tables
  • Injection or Ejection of Parts in Manufacturing Equipment
  • Scissor Lifts
  • Clutch and Brake Systems
  • Amusement Park Rides
  • Palletizers, Label Applicators in Packaging Equipment
  • Bin-Tilting Devices
The Detailed Pictures of 3B6 ×3T Flange Connection Air Spring
Detailed view of 3B6 ×3T Flange Connection Air Spring
Side view of 3B6 ×3T Flange Connection Air Spring
Sample Room
Sample room showing air springs

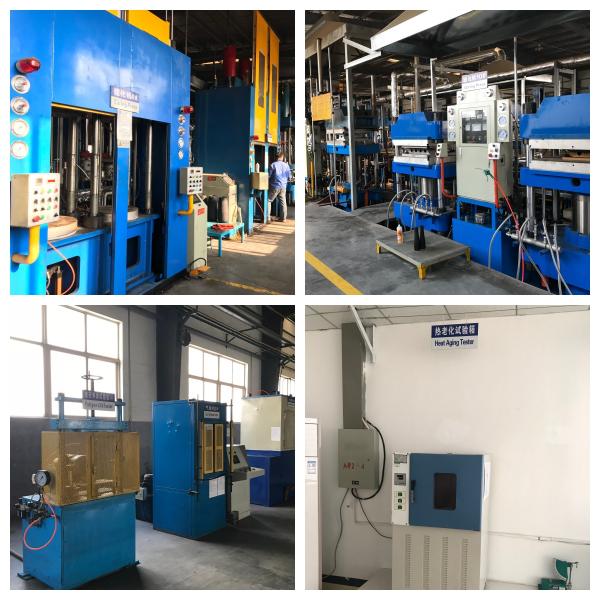

Factory Workshop
Factory workshop producing air springs
