HX1800CTSO Automated Sewing Folding Equipment With Fiber Optic Sensor Control System

Categories Book Gathering and Sewing
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Minimum Book Size: 100(sewing side) × 240 mm
Folding Type: Outward folding
Sewing Speed: 800 – 1800 books/h
Model Number: HX1800CTSO
Compressed Air: 6 – 8 bar
MOQ: 1 set
Delivery Time: 30 work days
Power Supply: 220 V / 1 Ph / 50 – 60 Hz / 5.2 kW
Price: USD 9500 per set
Book Thickness: 1 – 6 mm
Certification: CE
Place of Origin: China
Supply Ability: 10 sets/month
Maximum Book Size: 570(sewing side) × 420 mm
Weight: 580 kg
Brand Name: HXCP
Dimensions: 2830 × 1500 × 1500 mm(L × W × H)
Packaging Details: Stretch Film with Wooden Case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HX1800CTSO Automated Sewing Folding Equipment With Fiber Optic Sensor Control System

HX1800CTSO Automated Sewing Folding Equipment With Fiber Optic Sensor Control System

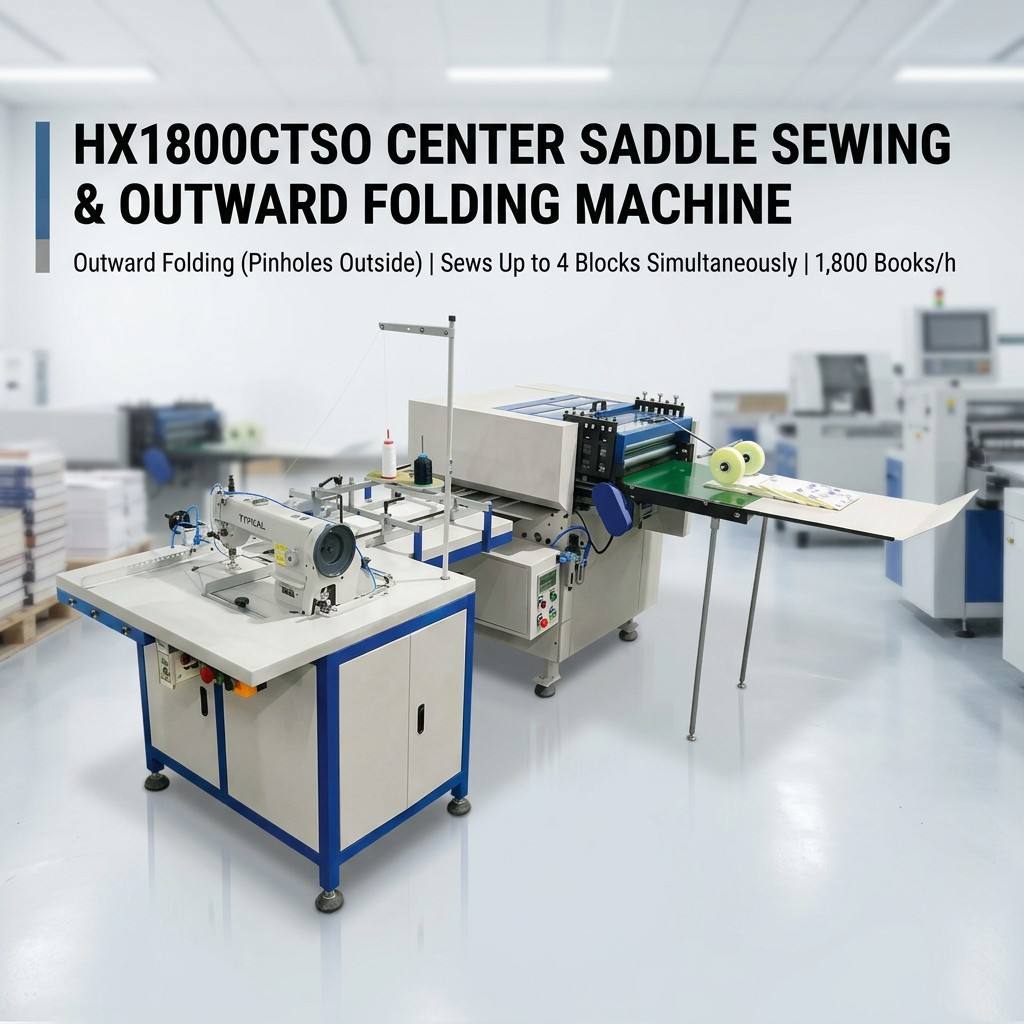

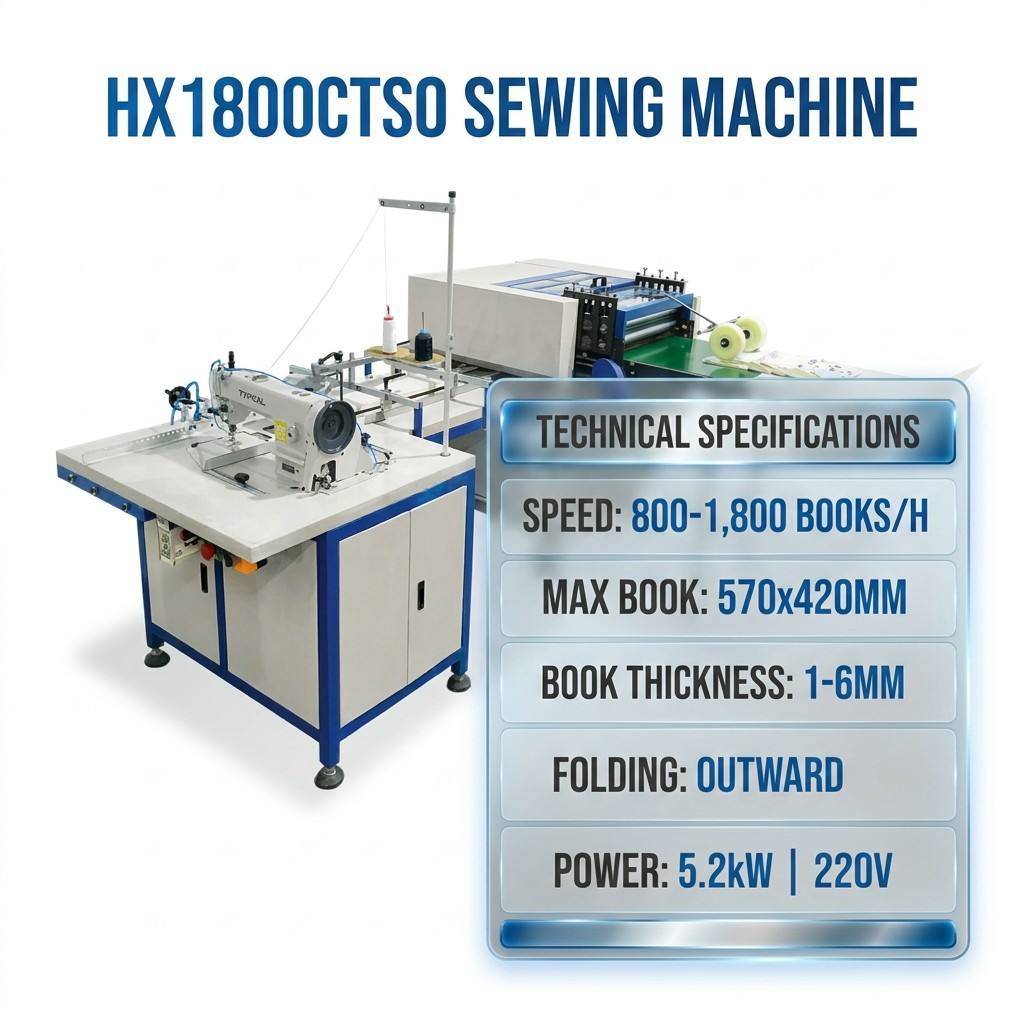

HX1800CTSO automated sewing folding equipment front view HX1800CTSO equipment side view showing folding mechanism Close-up of sewing and folding components HX1800CTSO machine operational view
The HX1800CTSO Center Saddle Thread Sewing and Outward Folding Machine is a professional integrated processing equipment dedicated to center saddle thread sewing and outward folding production. It is perfectly tailored for mass manufacturing of notebooks, passports, instruction manuals and hardcover book blocks, serving as a high-efficiency core finishing device for modern printing and bookbinding workshops.
Automated Workflow & Intelligent Control
Adopting a human-machine collaborative streamlined workflow, the machine only requires simple manual feeding, while all subsequent complex procedures are fully automated. Equipped with high-precision optical fiber sensor control, it realizes intelligent and accurate thread sewing, automatic thread cutting, standard outward folding with external pinholes, professional spine pressing and finished product delivery in one continuous cycle.
The automated one-stop processing eliminates manual intervention in intermediate links, effectively unifying product standards and reducing human error and defective rates.
High-Capacity Multi-Block Processing
Boasting powerful multi-block synchronous processing capability, this versatile machine can sew up to four book blocks at the same time within the processing range, greatly amplifying production capacity and optimizing batch production efficiency.
It delivers extremely precise stitching and neat outward folding effects, ensuring uniform pinhole position, flat book spines and consistent finished appearance for every product, fully meeting high-standard commercial printing requirements.
Performance Specifications
Production Speed800 to 1800 books per hour (adjustable)
Processing CapacityUp to 4 book blocks simultaneously
Control SystemFiber Optic Sensor Control
Folding TypeOutward Folding
Supporting an ultra-wide adjustable production speed of 800 to 1800 books per hour, the equipment flexibly adapts to both medium and large-batch production tasks. It maintains stable high-speed operation without compromising processing accuracy, perfectly balancing high yield and superior product quality.
Key Features & Benefits
  • Outward folding craftsmanship for special book block structural demands
  • Fiber optic sensing for reliable triggering and consistent sewing quality
  • Integrated thread cutting, folding and spine pressing structure
  • Simultaneous processing of four book blocks for bulk orders
  • Adjustable speed settings for flexible production requirements
  • Strong product compatibility for various saddle-stitched publications
HX1800CTSO machine detailed operation view Close-up of sewing mechanism and components Folding and pressing system detail Complete HX1800CTSO equipment overview
